HEATING ELEMENTS – TUBULAR HEATING ELEMENTS

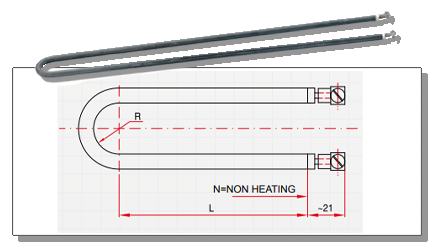

The heating unit consists of a metal heating element and of two output pins. This type of heating elements is produced in a large range of executions, with different parameters according to their field of applications. They can be used for contact heating of the plates by enclosure or by building into the groove. For heating of calm or flowing air. Liquids can be heated only under certain conditions.

Technical description

Produced length is between 300 – 6000mm and voltage between 12 – 400 V. Power according to the heated ambient (it reflect also material of the shell – steel, stainless steel, copper).

Length L:300 - 3300 mm, L1: 8 - 29 mm, N: 20 - 50 mm

The heating element consists of a U Form heating branch and two fixing flanges with nuts. It is equipped with screw terminals with M4 screws or with terminal pins. This type of heating elements is produced in a large range of executions, with different parameters according to their field of applications. They can be used for contact heating of the plates by enclosure or by building into the groove. For heating of calm or flowing air. Liquids can be heated only under certain conditions.

Technical description
Length L: 8,0 - 35,0 mm
Length L: 130 - 1600 mm
Length N: 30 - 225 mm

Produced length is between 130 – 1600mm and voltage between 12 – 400 V. Power according to the heated ambient (it reflect also material of the shell – steel, stainless steel, copper).

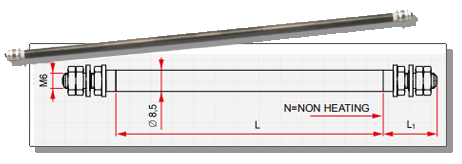

Straight heating element with a metal shell and power cables. This type of heating elements is produced in a large range of executions, with different parameters according to their field of applications. They can be used for contact heating of the plates by enclosure or by building into the groove. For heating of calm or flowing air. Liquids can be heated only under certain conditions.

Produced length is between 300 – 6000mm and voltage between 12 – 400 V. Power according to the heated ambient (it reflect also material of the shell – steel, stainless steel, copper).

Technical description
Length L: 300 - 4500 mm, L1: according to the customer's wishes
Length N: 30, according to the customer's wishes
