HEATING CARTRIDGES – BASIC MODEL

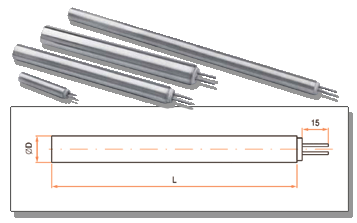

BASIC EXECUTION OF HEATING CARTRIDGE
Basic type of heating cartridge is fitted with 15 – 20 mm wire terminals made of pure nickel.
Technical description
Diameter D: 6,5 mm - 25 mm

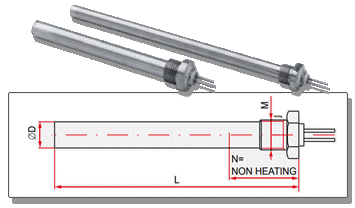

HEATING CARTRIDGE WITH FLANGE
Cartridge heaters with flange are fitted at the terminal side with a threaded part for easy assembly and disassembly. Diameter D of the cartridge corresponds to thread dimension M on the flange, as indicated in the table.
Technical description
Diameter D: 6,5 mm - 25 mm
Thread dimension M on the flange: 10x1, 12x1,5, 14x1,5, 16x1,5, 20x1,5, 27x1,5

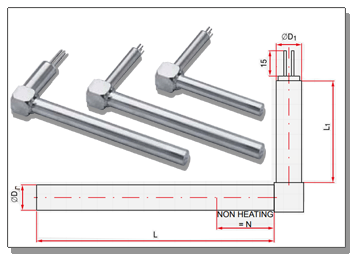

HEATING CARTRIDGES WITH RIGHT ANGLE OUTLET
Right angle outlet of the heating cartridge is fitted with 15 – 20 mm wire terminals made of pure nickel.
Technical description
Diameter D: 6,5 mm - 25 mm

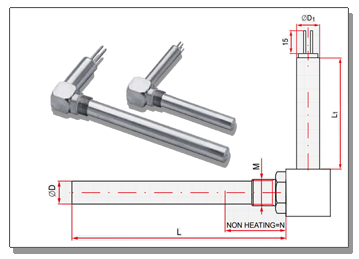

HEATING CARTRIDGES WITH FLANGE AND RIGHT ANGLE OUTLET
Right angle cartridge is fitted at the terminal side with a threaded part for easy assembly and disassembly. Diameter D of the cartridge corresponds to thread dimension M on the flange.
Technical description
Diameter D: 6,5 mm - 25 mm
Thread dimension M on the flange: 10x1, 12x1,5, 14x1,5, 16x1,5, 20x1,5, 27x1,5

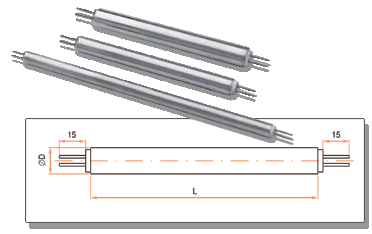

HEATING CARTRIDGE WITH WIRE TERMINALS ON BOTH SIDES
Heating cartridges with wire terminals on both sides is fitted with 15 – 20 mm wire terminals made of pure nickel.
Technical description
Diameter D: 6,5 mm - 20 mm
